Name: VIVIX 14 x 17N CSI Wireless Digital X-ray Panel with VXVue Software
SKU: 544737

Multi-purpose Portable Flat Panel Detector for Digital Radiography

Wireless or Tethered Option

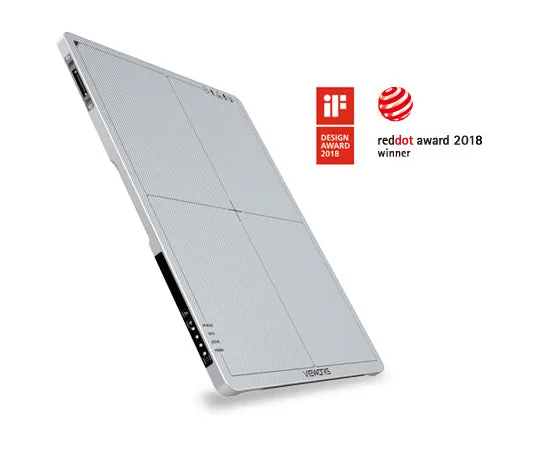

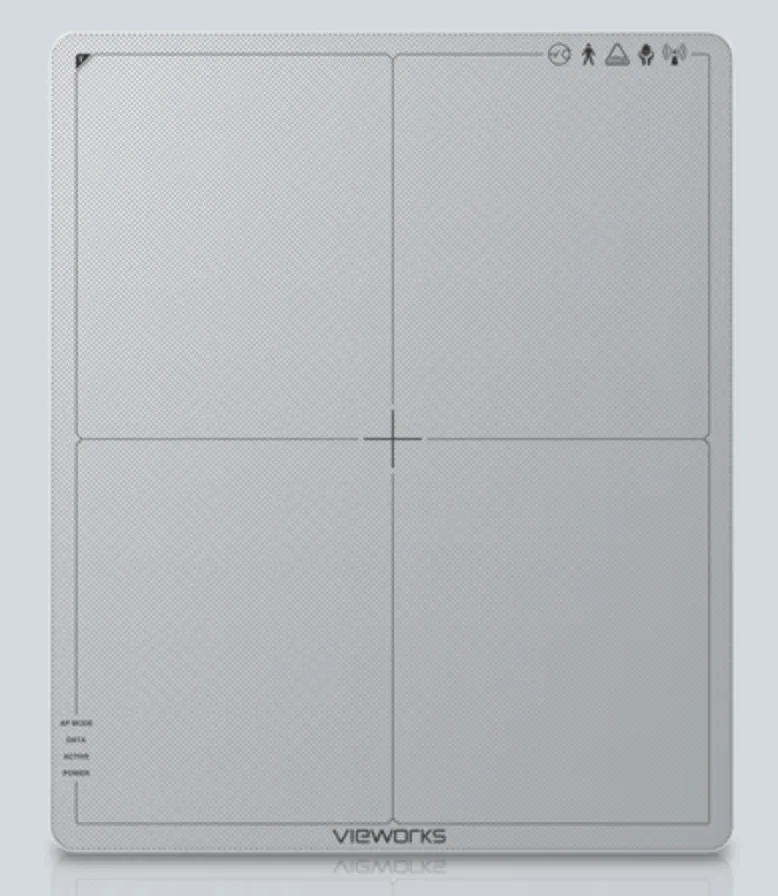

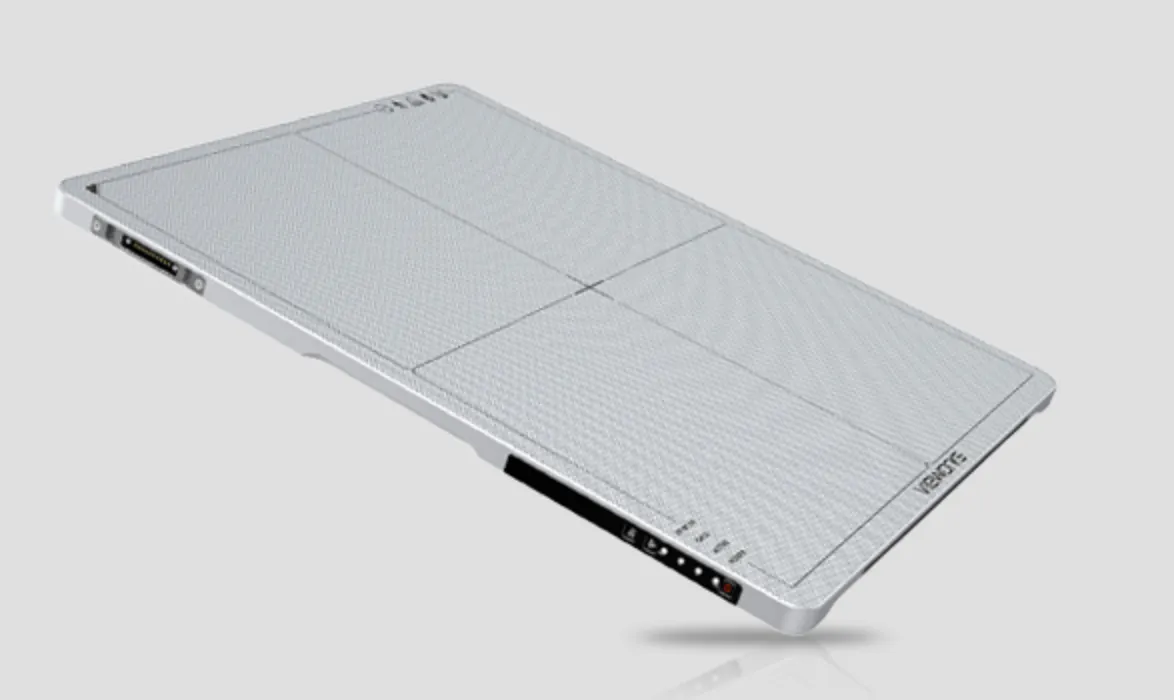

The VIVIX-S 1417N is a multi-purpose Portable fat-panel detector with an active area of 14” x 17”. With its enhanced durability you are assured simple management and low maintenance costs. In addition, with its fast wireless communication patients have a shorter through-put performance. In addition for the first time, this panel has a NFC (Near Field Communication) function for quick and easy configuration.

Panel Features

Super Durable

*Usage in various temperature environments *IP 56 rated – dust and water resistant

Fast Data Communication Speed

*802.11ac wireless communication with 3 internal antennas *Short booting time : 15 secs

Improved Usability

*Hot-Swapped batteries: replacing batteries without turning off the detector(dual batteries) *Light and ergonomic design for super mobility

Supreme Image Quality

*Supreme clinical image quality with high DQE and MTF

Stable and Reliable AED (Automatic Exposure Detection)

*Needs no connection to an X-Ray Generator Detector *AP Mode or Detector Only Mode

Image Acquisition Time (After X-Ray Exposure)

*Approx. 2 seconds (Preview) *Approx. 4.5 seconds (High Resolution View) *Approx. 6.5 seconds (Processed Image)

IP56 - Water Resistant and Dust-proof

X-ray detectors may be used in the harsh environment exposed to water and dust. Ensuring the stable operation of the product in any circumstance, VIVIX-S 1417N conforms to the water and dust resistance rating IP56. More durable product design will provide you with the superior values: better usability, more stable operation and low maintenance cost.

VIVIX-S 1417N is designed with robust mechanical parts to provide better product durability. In order to ensure the product quality, we comply with our strict internal reliability test process.

Repeat 30,000 times to test impact/ torsional reliability
Drop from 70㎝ (2.3 ft)
Uniform load (over the whole surface): Max. 300kg
Local load (center diameter 40mm): Max. 150kg • Operation Temperature: 10℃ - 35℃
Operation Humidity: 30 - 85% (Non-condensing)

Enhanced Durability - Reliable Usage in Any Environment

Technical Specifications of the Panel Package

Model Name	FXRD-1417NAW / FXRD-1417NBW
Technology	a-Si TFT with photodiode
Scintillator	CsI:Tl / Gd2O2S:Tb
Pixel Pitch	140 ㎛
Spatial Resolution	3.5 lp/㎜
Pixels	2560 x 3072 pixels
Image Size	14" x 17" (35.8 ㎝ x 43.0 ㎝)
Grayscale	16 bit
Recommended Cycle Time	10 s
Data Interface	Gigabit Ethernet IEEE 802.11 a / b / g / n / ac
X-ray Generator Interface	Line trigger: DR trigger Mode Auto trigger: AED Mode

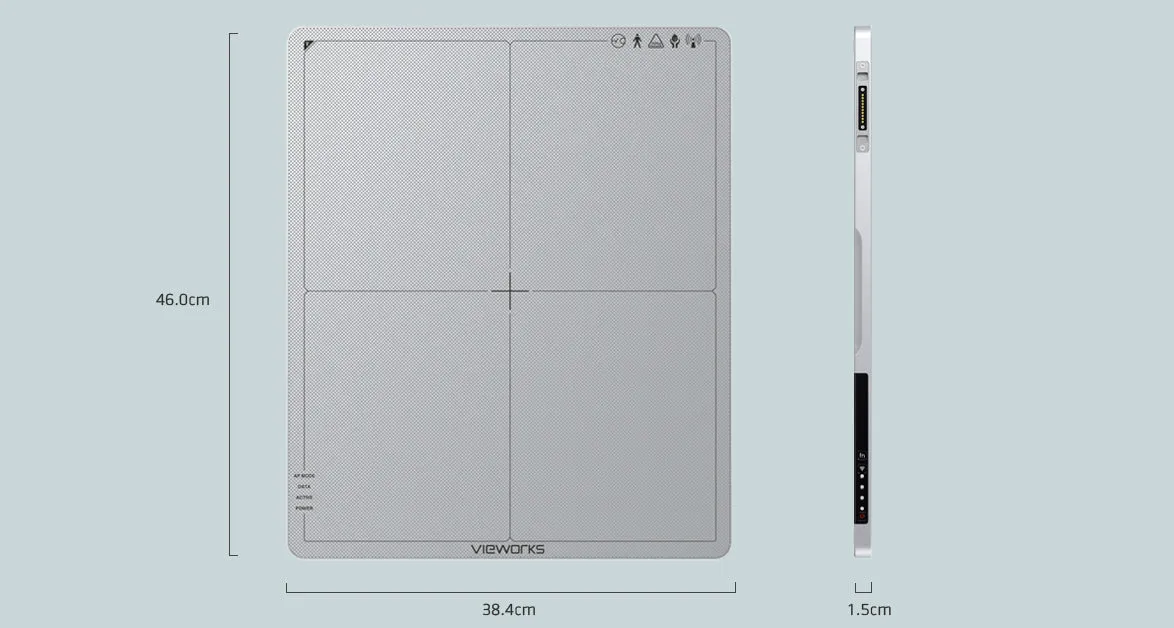

Dimensions	38.4 ㎝ x 46.0 ㎝ x 1.5 ㎝
Weight	2.9 kg (including battery)
Battery	Lithium Ion 3100 mAh x 2 8 h (Capturing)
Dust and Water Resistant	IP56
X-ray Voltage Range	40 - 150 kVp
Operating Environment	10℃ to 35℃ 30 % to 85 % RH (non-condensing)
Power	DC 24 V, 1.0 A

* Specifications are subject to change without prior notice.

Workstations Specs

1TB Local Mini-PACS in a RAID 1 (2 Total Drives)
Intel Core i3 Processor 6100 CPU (3.7 GHz)
4GB, Windows 7 Professional 64-bit VXvue Acquisition Software
Monitor: 23″ Touch Screen – Resolution 1920×1080 Ratio: 1000:1
Licensed MIRAssist Bridge 2x1TB (1TB RAID 1)

Warranty

	Five (5) year Panel Manufacturer Warranty
	Three (3) year Computer Acquisition Station and Monitor Warranty from the Manufacturer* *Station and Monitor Warranty plan includes Next Business Day On-site Support from Lenovo

Available Options

SYSTEM OPTIONS

Additional Viewing Licenses
Mobile App for iPad and iPhone
Laptop or Tablet for Mobile Applications
Protective Case with Handle for movable applications

Drop Insurance Coverage

OPTIONAL DROP INSURANCE COVERAGE

Covers damage to the panel caused by an accidental drops
Interest free financing for multi year policies.
Coverage will not be cancelled due to claims.
Pricing is fixed for the duration of the enrollment.
Permanent detector replacement sent directly from the manufacturer.
Coverage is provided for up to (2) occurrences per year.

VXVue Software
The VXVue Acquisition software with Pureimpact ™blends cutting edge technology with a user friendly interface. The software features: easy management for simplified work flow, post-processing algorithm for an efficient diagnosis, various image adjustment tools, a user-friendly touch interface with intuitive GUI, and customizable skins.
