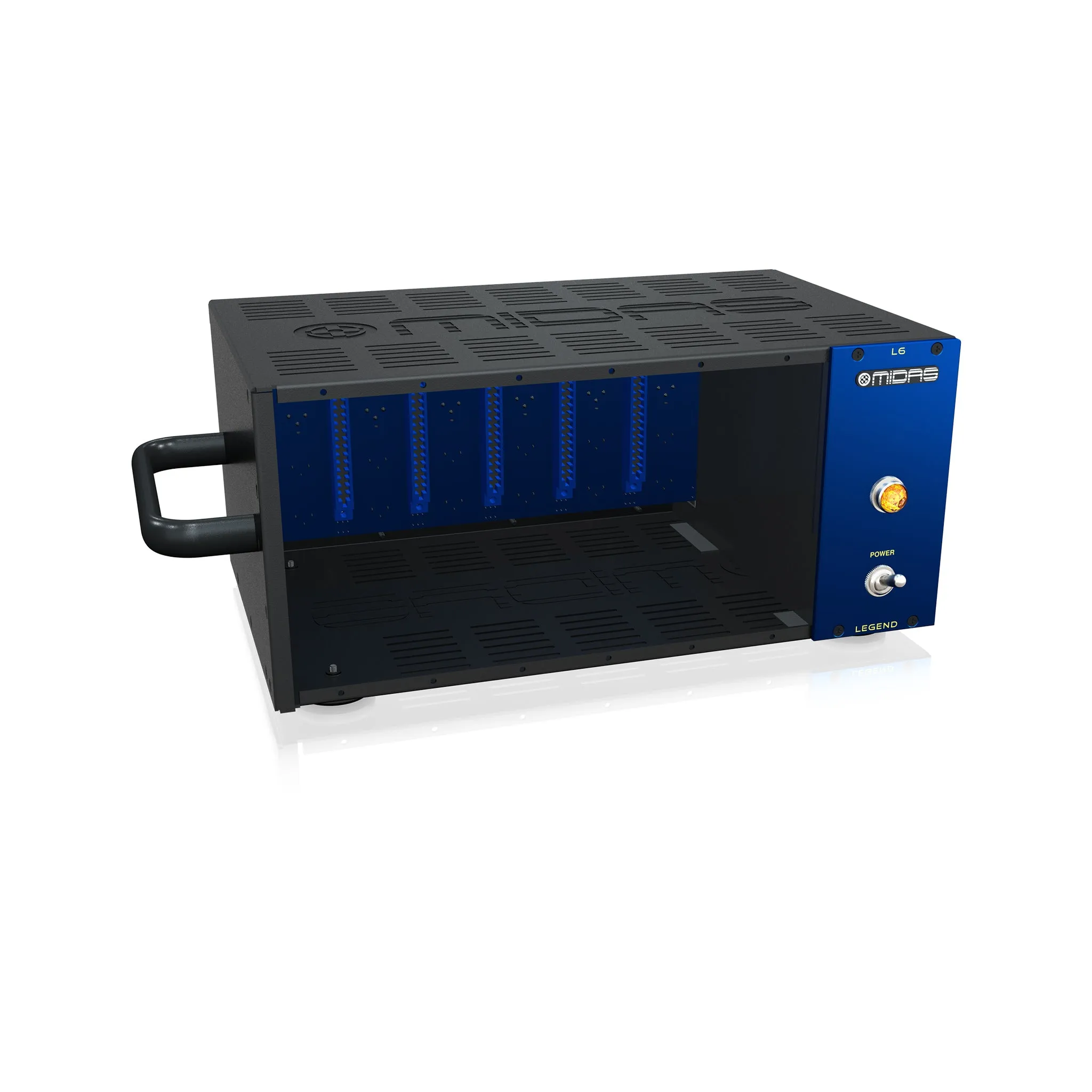

The LEGEND L6 500 Series Portable Chassis lets you mix and match a wide range of audio processing modules to build the ideal signal chain for any application. With space for up to 6 single-width modules, advanced audio routing for simplified cabling, and a robust auto-ranging universal switch-mode power supply, you can take your favourite modules anywhere in the world with complete confidence. The included rackmount kit allows the L6 to be installed in standard 19" studio and touring racks. Designed to accommodate all 500 series-compatible modules and plug-in cards, the L6 is the perfect companion for your MICROPHONE PREAMPLIFIER 502, COMPRESSOR LIMITER 522, PARAMETRIC EQUALISER 512, and the many other modules currently under development – as well as those from 3rd party vendors.
Features:
- 500 series portable chassis for 6 single-width modules
- Advanced audio routing reduces cabling complexity
- Audio output link switches provide cable-free daisy-chain connections between modules
- Compressor bus link switches enable stereo and multi-channel dynamics sidechain linking
- Rugged free-standing chassis with convenient carrying handle for portable applications
- 3U 19" rackmount kit allows installation in recording studios and live touring racks (included)
- Earth lift switch eliminates any ground loop problems
- High power auto-ranging universal switch-mode power supply for use worldwide
- Over-specified ultra-low noise power supply output provides 3.2 A @ ±16 V and 300 mA @ 48 V
- Main and auxiliary inputs and outputs per channel on Neutrik XLR connectors
- Premium quality components throughout for crystal-clear audiophile signal path
- Designed and engineered in the U.K.
