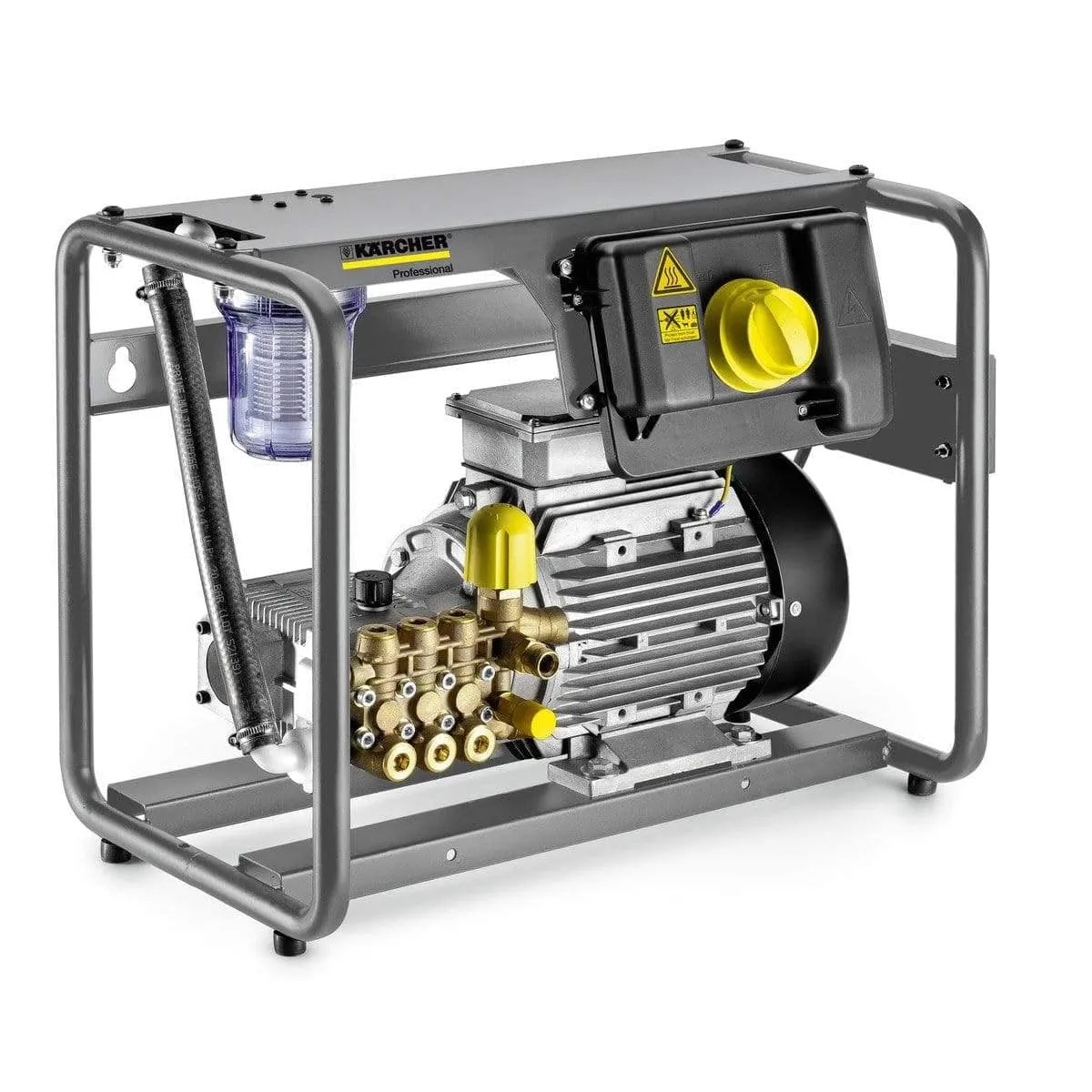

With a water volume of about 900 litres per hour, the HD 9/18-4 Cage Classic is the most powerful high-pressure cleaner in the HD Cage Classic range. This three-phase machine with 4-pole motor is designed for continuous operation and maximum cleaning performance and features a wide range of high-quality, long-lasting components, such as the crankshaft pump with ceramic piston or sophisticated sealing technology. This robust high-pressure cleaner also features a sturdy frame construction for effective protection against external influences. The intelligent operating concept ensures convenient and safe operation. The option to mount the machine on the wall is a practical, work-alleviating feature. In addition, all relevant components are easily accessible and maintenance-friendly. The long service intervals of the HD 9/18-4 Cage Classic round off the features of this highly reliable and powerful machine.
FEATURES AND BENEFITS
Versatile

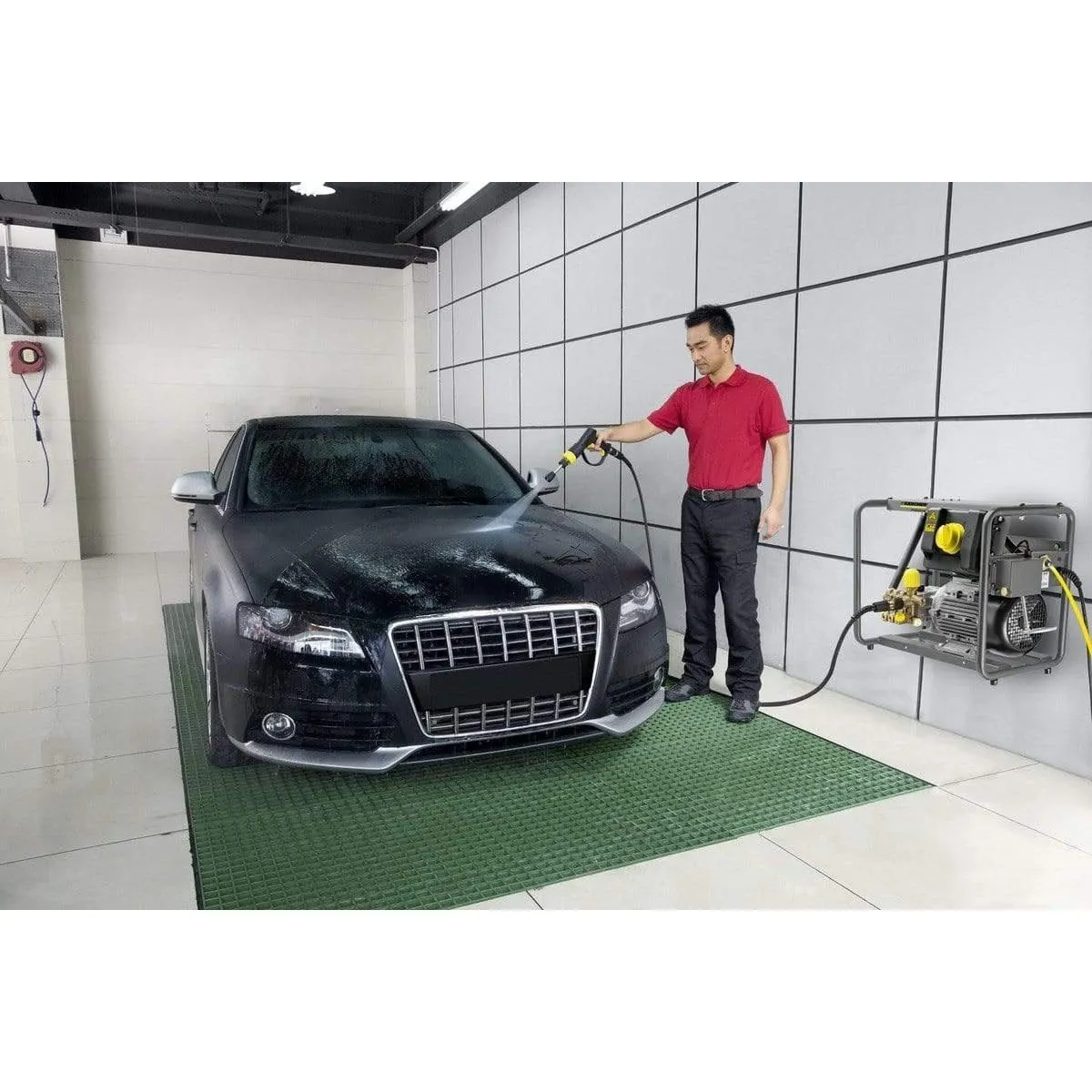

- The machine can be attached to the floor or the wall.
- Practical trigger gun storage with auto off function (Total Stop optional).
SPECIFICATIONS
Technical data
| Current type (Ph/V/Hz) | 3 / 400 / 50 |
| Flow rate (l/h) | 450 - 900 |
| Working pressure (bar/MPa) | 70 - 180 / 7 - 18 |
| Max. pressure (bar/MPa) | 250 / 25 |
| Connected load (kW) | 5,9 |
| Number of simultaneous users | 1 - 1 |
| Mobility | Stationary |
| Weight (with accessories) (kg) | 55 |
| Dimensions (L × W × H) (mm) | 625 x 500 x 360 |
Equipment
- Spray gun, Standard
- High-pressure hose, 10 m, ID 8, 315 bar
- Stainless steel spray lance, 600 mm
- Power nozzle

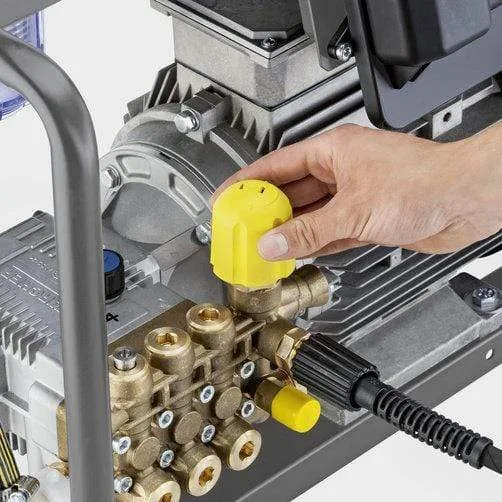

- Crankshaft pump with ceramic pistons
