Are you looking for a complete studio in a box?

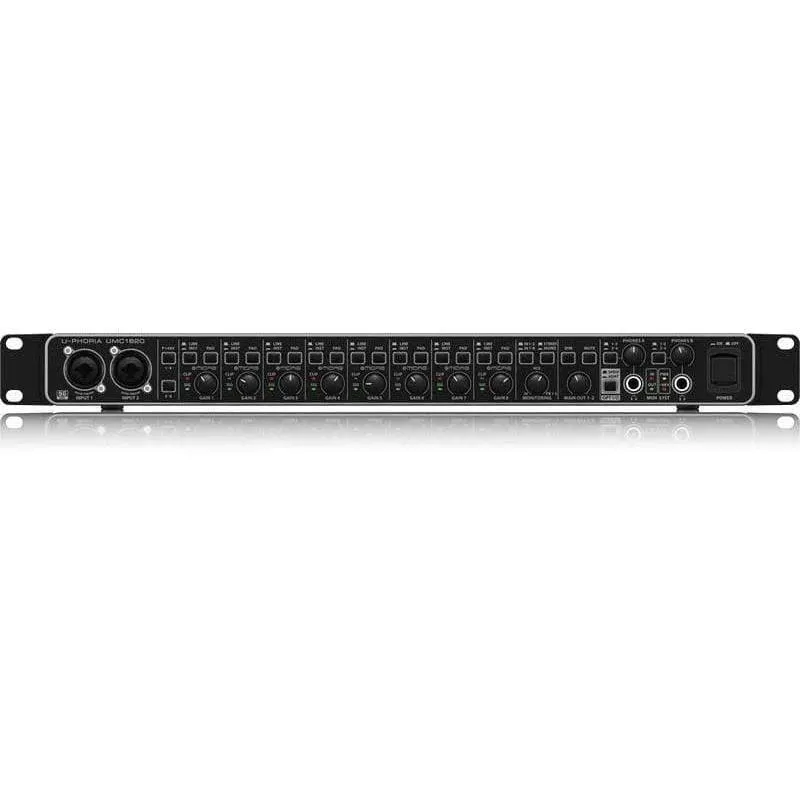

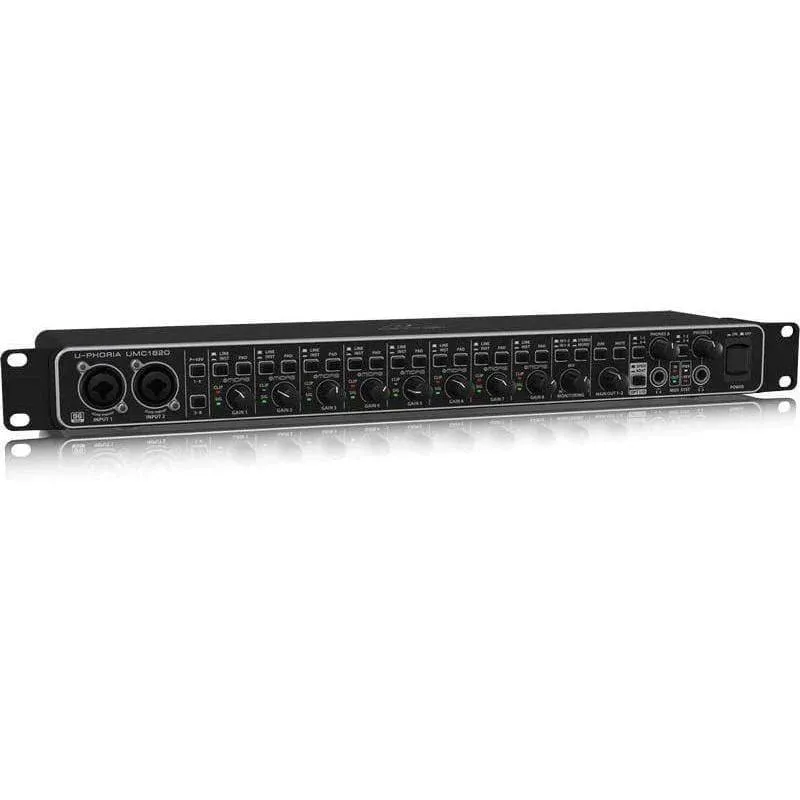

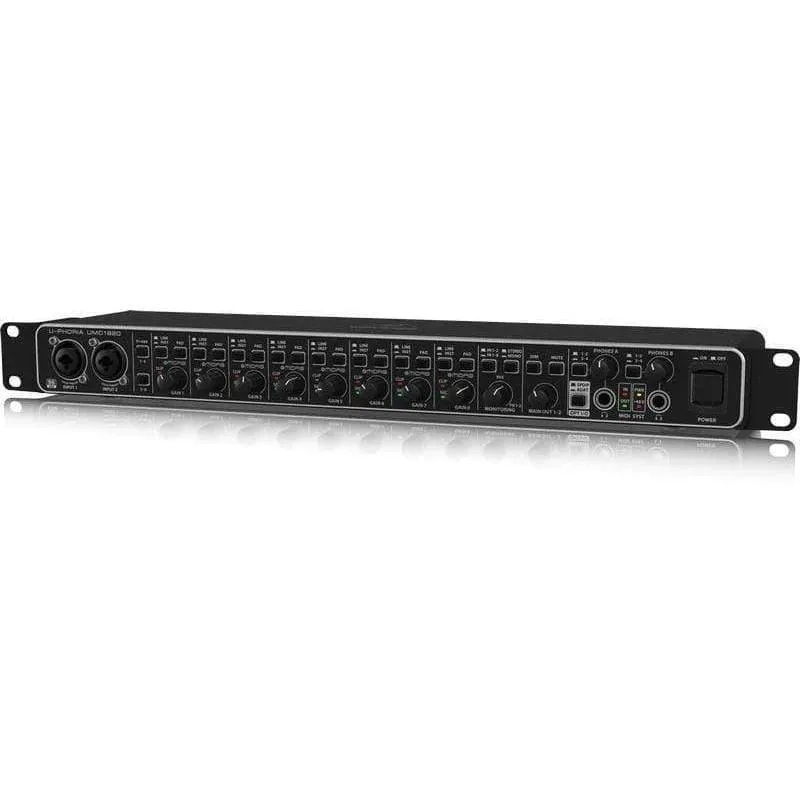

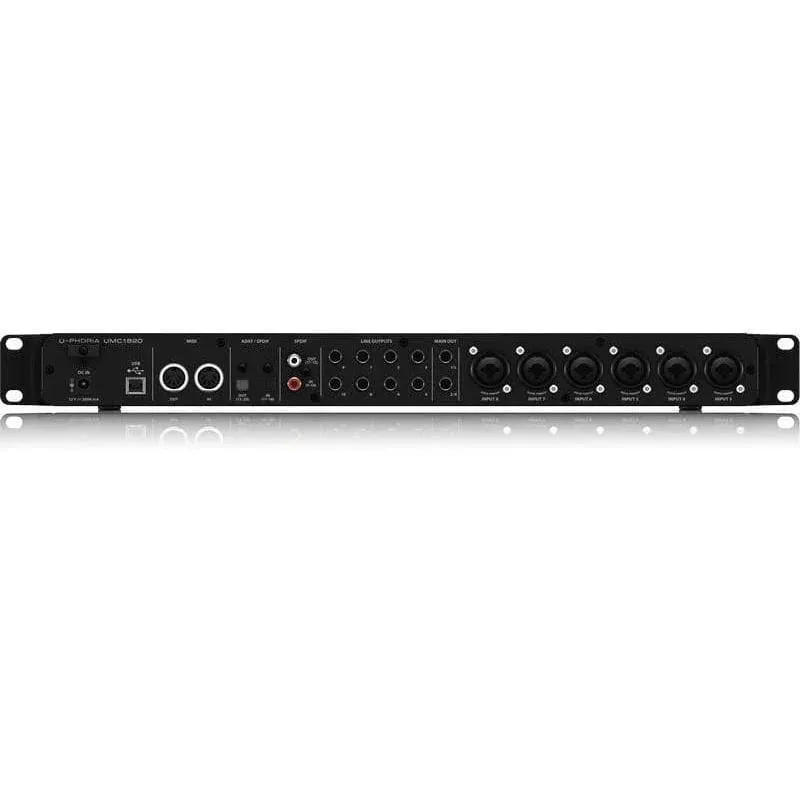

The Behringer U-PHORIA UMC1820 USB Audio Interface is the perfect solution for you! With 18 inputs and 10 outputs, 8 Midas-designed mic pres and high-resolution 24-bit/96kHz converters, and the option to expand to 16 preamps by connecting an ADA18200, you can count on this audio interface to provide you with the best sound quality.
FEATURES:
-
18x20 USB2.0 Audio/MIDI Interface with ADAT I/O for recording microphones and instruments
-
Audiophile 24-Bit/96 kHz resolution for professional audio quality
-
Compatible with popular recording software including Avid Pro Tools * , Ableton Live * , Steinberg Cubase * , etc.
-
Streams 18 inputs and 20 outputs of ultra-low latency audio to your computer, supporting Mac * OS X * and Windows XP * or higher
-
8 state-of-the-art, Midas designed Mic Preamplifiers with 48 V phantom power
-
Optical I/Os supporting S/PDIF, ADAT and S/MUX formats up to 96 kHz
-
Simultaneous use of all analog, coaxial S/PDIF, optical ADAT and MIDI signals
-
Zero-latency direct monitoring of all analog inputs while recording
-
ADAT input allows for combination with Behringer ADA8200 (not included) for expanding to a total of 16 Midas designed Mic Preamplifiers
SPECIFICATIONS:
| Type | Audio Interface |
| Weight | 2.72 Kg |
| A/D Resolution | 24-bit/96kHz |
| Analog Input | 8 x XLR/TRS Combo |
| Analog Output | 10 x TRS |
| Brand | Behringer |
| Computer Connectivity | USB 2.0 |
| Digital Inputs | 1 x S/PDIF, 1 x ADAT |
| Digital Outputs | 1 x S/PDIF, 1 x ADAT |
| Dimensions | (L x W x H) 24.4" x 7.0" x 4.0" |
| Form Factor | Desktop/Rackmount |
| Manufacturer Part Number : | UMC1820 |
| MIDI I/O: | In/Out |
| No. Of Preamps | 8 |
| Phantom Powered | Yes |
| Simultaneous I/O | 18 x 20 |
HOW IT WORKS:
To get started, simply connect the U-PHORIA UMC1820 to your computer via the USB 2.0 connection. Then, plug in your mics and instruments to the XLR/TRS combo inputs and outputs. You can also connect an ADA18200 to the ADAT input to expand to 16 preamps. Finally, adjust the settings to your desired sound quality and begin recording!
FAQ:
Q: How many inputs and outputs does the U-PHORIA UMC1820 have?
A: The U-PHORIA UMC1820 has 18 inputs and 10 outputs.
Q: Is this audio interface compatible with Mac and PC?
A: Yes, the U-PHORIA UMC1820 is compatible with both Mac and PC.
Q: Does this audio interface have phantom power?
A: Yes, the U-PHORIA UMC1820 has phantom power.
